Mira Event XS Manual

Specifications

Brings powerful showering and practical features for you customer’s bathroom.

Temperature control

• Control type: Manual
• Automatic shutdown
• Factory set to safe max temperature

Installation Information

• Water & Cable entry points: Left (rising, falling & rear)
• Inlet connection: 15mm dual entry push fit
• Outlet connections: 1/2″ BSP male
• Supply Voltage: 230v + 10%
• Supply rating: 3 amp
• Terminal block connections: Maximum 2.5mm²
• Cistern: Minimum 230 litres

Supply Conditions (hot and cold)

• Cold water range: Up to 25°C
• Hot water range: 55°C-65°C
• Minimum maintained pressure: 0.008 bar (80mm head)
• Maximum maintained pressure: 0.5 bar (5 metre head)
• Maximum static pressure: 1.0 bar (10 metre head)

Shower Performance

• Flow rate up to 12 litres per minute
• Temperature stability: + 6°C
• Maximum temperature stop – enhances safety

Easy to fit & Maintain

• No need to prime
• Removable filters
• Removable check valves

Benefits for your customer

• Separate temperature and flow controls

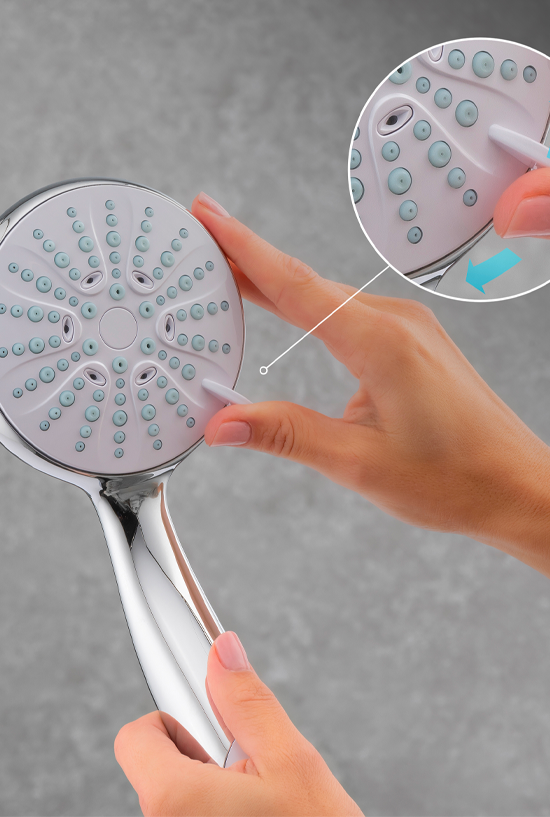

• 11cm, four spray showerhead
